Description
Specifications
Dimensions: 4000 x 1735 x 1500 mm
Volume: 7.5 m³
Payload capacity: 8 tons
Standard colors: green, blue, red

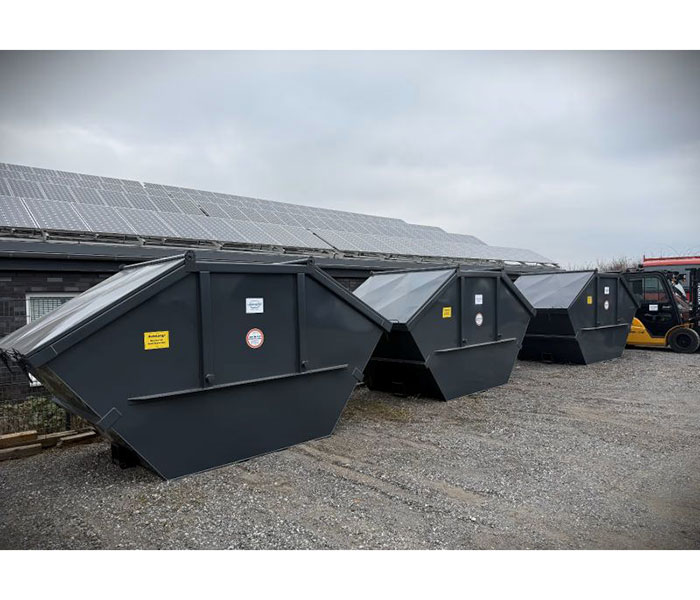

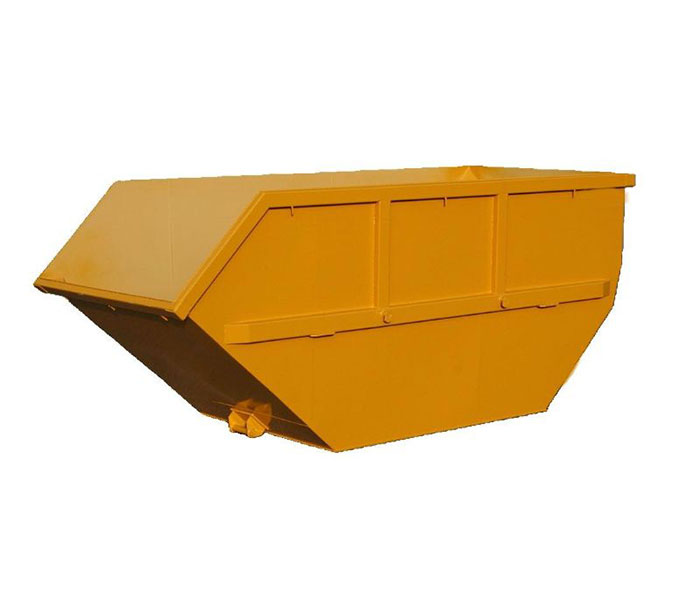

The Abroll Skip Container compliant with DIN 30735 is a professional solution for waste collection and transportation in urban environments and areas with limited access. Designed to be compatible with vehicles equipped with multi-hook lifting systems (Absetzkipper), this compact skip container combines excellent maneuverability with high structural strength.
Made in UAE and manufactured using modern production technology with continuous welding and strict quality control, the DIN 30735 skip container is ideal for waste management companies, construction contractors, recycling operators and municipal service providers.
What is a DIN 30735 Abroll Skip Container
The DIN 30735:2016 standard regulates the dimensions, materials and safety requirements for skip containers with a maximum width of 1520 mm. These containers are designed for fast loading and unloading using specialized vehicles equipped with telescopic lifting arms and chain lifting systems.
Technical Specifications for DIN 30735 Abroll Skip Container
Standard: DIN 30735
Maximum width: 1520 mm
Typical volumes: between 2 m³ and 10 m³
Lifting hook height: approximately 800 mm
Distance between rollers: approximately 1300 mm
Tilt bearing pin diameter: approximately 30 mm
Materials Used
Floor made from 4 mm S235JR steel
Side walls made from 3 mm S235JR steel
Discharge wall made from 3 mm S235JR steel
Reinforcement profiles 60 x 40 mm
High strength steel lifting hook
Construction and Finishing
Continuous welding inside and outside for increased durability
Reinforced corners for additional structural strength
Heavy duty tilt bearings
Interior and exterior anti-corrosion primer coating
Exterior painting in customer selected RAL color
Optional DGUV 114-010 testing mark for export markets
Advantages of DIN 30735 Skip Containers
Compact dimensions ideal for urban environments
High maneuverability in restricted spaces
Robust construction for intensive daily use
Guaranteed compatibility with DIN 30735 lifting systems
Low maintenance requirements
Custom configurations available upon request
Applications
Municipal waste collection
Construction and demolition sites
Recyclable material collection
Transport of rubble and bulk materials
Municipal and industrial services
DIN 30735 Abroll Skip Containers provide a reliable and efficient solution for waste management, construction and logistics operations requiring compact containers with high load capacity and long service life. Manufactured in the UAE, these containers ensure safety, durability and full compatibility with specialized skip loading vehicles used in modern waste handling operations.
