Description
Specifications
Dimensions: 650 x 650 x 300 mm
Sump depth: 200 mm
Spill capacity: 70 L
Maximum load capacity: 300 kg
Material: Stainless steel AISI 304 / 316
Support grate: galvanized, removable for easy maintenance
Support legs: 100 mm height, compatible with forklift or pallet truck handling
Drain valve: optional (not recommended for this type of tray)
Certifications: CE marking and WHG / StawaR compliance for export
Leak testing: according to EN ISO 3452-1
Warranty: 12 months

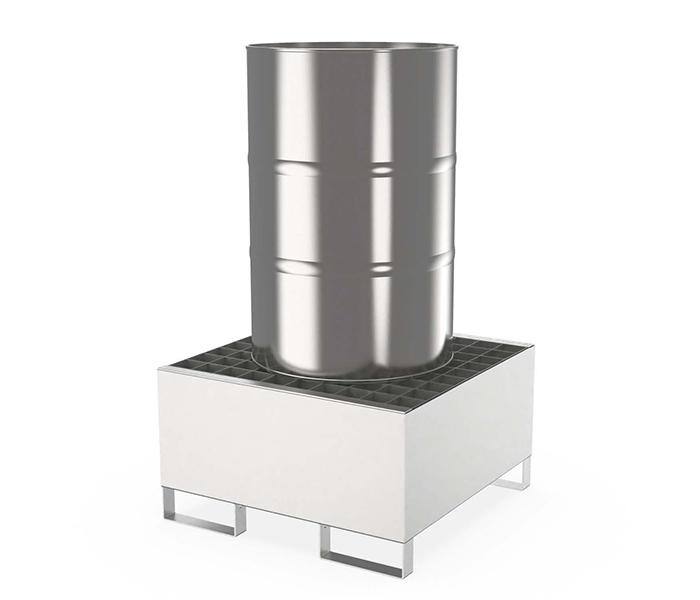

The Stainless Steel Spill Containment Tray for one 200 L drum is designed to prevent environmental contamination caused by accidental leaks of hazardous liquids, acids or solvents. The high quality stainless steel construction provides excellent corrosion resistance and allows the product to be used even in food and pharmaceutical industries where hygienic equipment is required. The smooth surface ensures easy cleaning while the removable galvanized grate simplifies maintenance.
Made in UAE and manufactured using high quality stainless steel and precision fabrication processes, this containment tray offers durability, reliability and long service life in demanding industrial environments.
Instructions for Use
Place the containment tray on a flat and stable surface, preferably in a protected indoor area.
Install the galvanized support grate and carefully place the 200 L drum on the tray.
Ensure the drum is stable and properly centered.
Any leaks or drips will be collected in the sump preventing environmental contamination.
Clean the tray periodically and inspect the structure for damage.
Inspect the product two to three times per year; in case of defects contact the manufacturer for repair.
Applications
Storage areas for petroleum products, oils and solvents
Industrial warehouses and logistics centers
Production, maintenance and repair workshops
Chemical, food and pharmaceutical facilities
Handling areas for hazardous or flammable liquids
Advantages
Full stainless steel construction with excellent resistance to acids and bases
Compact design ideal for restricted spaces
Optimal retention capacity for one 200 L drum (70 L sump capacity)
Robust and stable construction suitable for industrial environments
Easy to clean and maintain thanks to smooth hygienic surfaces
Certified according to European standards (CE / WHG / StawaR)
Removable galvanized grate for fast cleaning
Compatible with forklift or pallet truck handling
Safety
TÜV / DIBt approvals according to WHG / StawaR standards for export
Prevents contamination of soil and groundwater caused by accidental spills
Resistant to flammable and corrosive substances (H224–H226)
Factory tested for leak tightness according to EN ISO 3452-1
Stable construction with reinforced stainless steel base
Competitive Advantages
Manufactured in the UAE using high quality industrial materials
Produced according to European safety and quality standards
Custom production available according to customer requirements
Fast delivery and competitive manufacturer pricing
Technical support and industrial application consultancy
Conclusion
The stainless steel spill containment tray for one 200 L drum is a compact, durable and safe solution for capturing hazardous or corrosive liquids. Manufactured according to international safety standards and individually leak tested, this tray provides reliable environmental protection, operational safety and long service life, making it an essential product for modern industrial facilities.
