Description
Specifications
Dimensions: 1230 x 1230 x 300 mm
Sump depth: 200 mm
Spill capacity: 255 L
Maximum load capacity: 1000 kg
Material: Stainless steel AISI 304 / 316
Support grate: galvanized, removable for easy maintenance
Support legs: 100 mm height, compatible with forklift or pallet truck handling
Drain valve: optional (not recommended for this type of tray)
Certifications: CE marking and WHG / StawaR compliance for export
Leak testing: according to EN ISO 3452-1
Warranty: 12 months

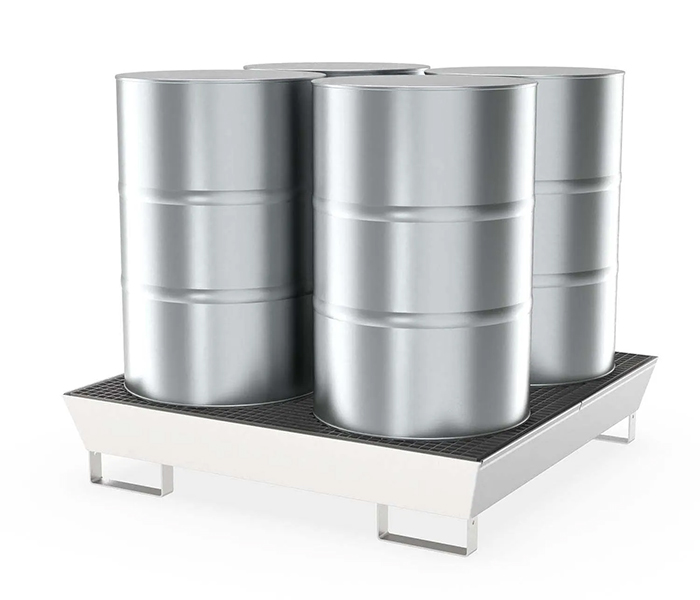

The Stainless Steel Spill Containment Tray for 4 x 200 L drums is designed to safely collect accidental leaks from drums containing hazardous liquids, preventing contamination of soil and groundwater. The stainless steel construction provides excellent resistance to acids, bases and flammable substances, making it suitable for use in chemical, food and pharmaceutical industries. The removable galvanized grate allows easy cleaning and maintenance.
Made in UAE and manufactured using high quality stainless steel and precision fabrication processes, this containment tray offers durability, corrosion resistance and long service life in demanding industrial environments.
Instructions for Use
Place the containment tray on a flat and stable surface, preferably indoors or in a protected area.
Install the galvanized support grate on the tray.
Carefully place the four 200 L drums on the grate ensuring proper stability.
Any accidental spills will be collected in the sump, protecting the environment from contamination.
Clean and inspect the tray periodically to maintain efficient operation.
Inspect the product two to three times per year; in case of damage contact the manufacturer for repair.
Applications
Storage areas for petroleum products, solvents and oils
Industrial warehouses and logistics centers
Production and maintenance workshops
Chemical, pharmaceutical and food industries
Handling and storage areas for hazardous liquids
Advantages
Large spill retention capacity (255 L) suitable for four 200 L drums
Full stainless steel construction with excellent resistance to acids, bases and solvents
Robust and stable design suitable for industrial environments
Removable galvanized grate for easy maintenance and cleaning
Smooth and hygienic surface ideal for sensitive environments
Compliance with European standards (CE / WHG / StawaR)
Easy handling with forklift or pallet truck
Long service life with high mechanical resistance
Safety
TÜV / DIBt approvals according to WHG / StawaR standards for export
Prevents soil and groundwater contamination caused by accidental leaks
Resistant to flammable and aggressive substances (H224–H226)
Factory tested for leak tightness according to EN ISO 3452-1
High stability for heavy drums and large liquid volumes
Competitive Advantages
Manufactured in the UAE using high quality industrial materials
Produced according to European safety and quality standards
Custom design available according to specific customer requirements
Fast delivery and competitive manufacturer pricing
Professional technical support and industrial consultancy
Conclusion
The stainless steel spill containment tray for 4 x 200 L drums is a professional, safe and durable solution for collecting hazardous liquids. Its robust stainless steel construction and compliance with international standards ensure environmental protection, workplace safety and long service life, making it an essential piece of equipment for modern industrial facilities.
