Description
Specifications
Dimensions: 1230 x 650 x 400 mm
Sump depth: 200 mm
Spill capacity: 230 L
Maximum load capacity: 1000 kg
Material: Stainless steel AISI 304 / 316
Support grate: galvanized, removable for easy maintenance
Support legs: 100 mm height, compatible with forklift or pallet truck handling
Drain valve: optional (not recommended for this type of tray)
Certifications: CE marking and WHG / StawaR compliance for export
Leak testing: according to EN ISO 3452-1
Warranty: 12 months

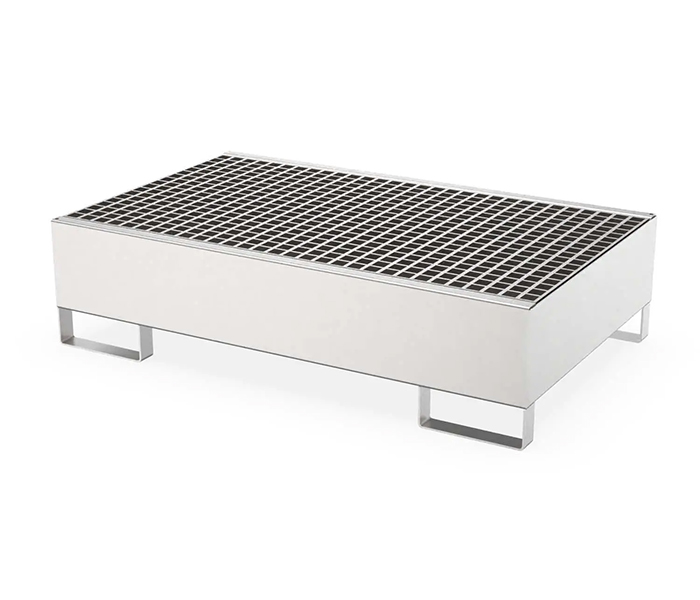

The Stainless Steel Spill Containment Tray for 2 x 200 L drums is a compact and efficient solution designed to safely collect accidental leaks from drums containing hazardous liquids. The robust stainless steel construction makes it ideal for use in industrial, logistics and chemical environments as well as in food and pharmaceutical industries where hygienic and corrosion resistant equipment is required.
Made in UAE and manufactured using high quality stainless steel and precision fabrication processes, this containment tray provides excellent durability, corrosion resistance and long service life.
Instructions for Use
Place the containment tray on a flat, stable surface protected from weather exposure.
Install the galvanized grate on top of the tray.
Place the two 200 L drums on the support grate ensuring they are stable.
Any accidental spills will be collected inside the sump preventing soil contamination.
Clean the tray periodically and check the condition of the grate and inner walls.
Inspect the product two to three times per year; in case of damage contact the manufacturer for repair.
Applications
Storage areas for petroleum products, oils and solvents
Industrial warehouses and logistics platforms
Production and maintenance workshops
Chemical, food and pharmaceutical industries
Handling areas for hazardous or flammable liquids
Advantages
Full stainless steel construction providing excellent resistance to acids and bases
Optimal retention capacity for two 200 L drums (230 L sump capacity)
Compact and stable design for safe drum storage
Removable galvanized grate for easy cleaning and maintenance
Certified according to European standards (CE / WHG / StawaR)
High resistance to corrosion and mechanical impact
Easy handling with forklift or pallet truck
Long service life with minimal maintenance
Safety
TÜV / DIBt approvals according to WHG / StawaR standards for export
Prevents contamination of soil and groundwater caused by accidental spills
Resistant to flammable and corrosive substances (H224–H226)
Solid leak tested construction according to EN ISO 3452-1
High stability for safe storage of heavy drums
Competitive Advantages
Manufactured in the UAE using high quality industrial materials
Produced according to European safety and quality standards
Custom production available according to customer requirements
Fast delivery and competitive manufacturer pricing
Technical support and industrial application consultancy
Conclusion
The stainless steel spill containment tray for 2 x 200 L drums is a safe, durable and cost effective solution for storing hazardous liquids. Its robust stainless steel construction and compliance with international safety standards ensure environmental protection, operational safety and long term reliability, making it an essential piece of equipment for modern industrial facilities.
