Description
This high-quality industrial product is engineered for professional performance and long-term reliability. Built with premium materials, it meets the rigorous demands of modern commercial and industrial environments.
Technical Specifications
- Wire mesh container -Metal Pallet boxes – High-Performance, Customizable Storage &
- Transport Solutions Overview &

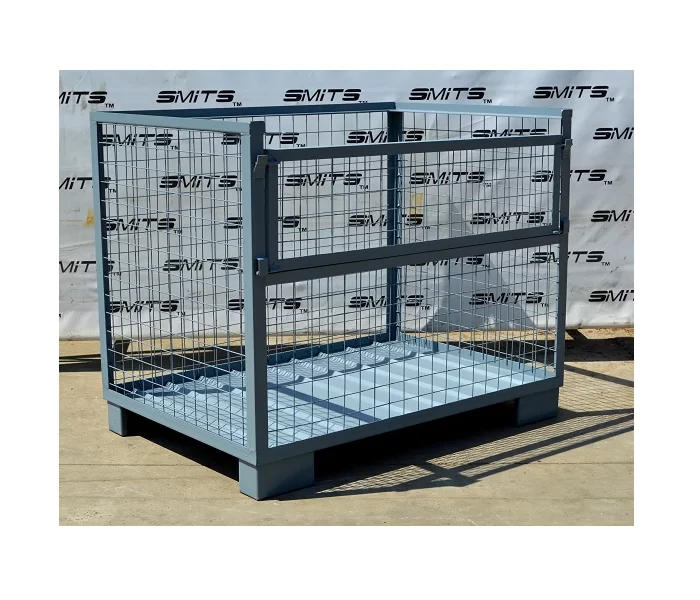

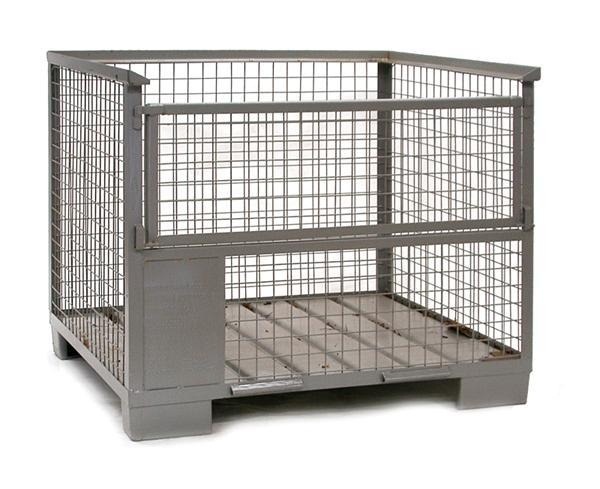

- Key Features Our Wire Mesh Pallet Stillage are engineered for maximum efficiency and durability. For example, one of our standard models measures 1200 x 800 x 970 mm and is built with the following features:
- Welded Mesh Walls: Made with a welded mesh featuring 50 × 50 mm openings and a robust 3 mm thickness, ensuring excellent structural integrity.
- Pressed Metal Floor: The floor is constructed from pressed (embossed) sheet metal with a thickness between 1.5 and 2 mm, providing a durable and reliable base.
- Foldable Lateral Shutter: Each box is equipped with a foldable side shutter that secures the contents while allowing easy access.
- Laminated Profile Structure: The framework is built using laminated profiles, enhancing strength while keeping the weight manageable.
- Versatile Handling Options: Designed for efficient handling, these boxes can be maneuvered using a sliding device (liza) or a forklift.
- Stackability: They can be safely stacked up to five levels, with each level supporting a load of up to 1000 kg.
- Corrosion Protection: The exterior is treated with an anti-corrosion system—comprising a primer and a final topcoat—with the option for thermal hot-dip galvanizing upon request.
Additional Product Variant We also offer a variant with similar robust characteristics, featuring:
- Welded Mesh Walls: 50 × 50 mm openings.
- Standard Pressed Metal Floor: Typically 2 mm thick, with an optional wooden floor (25 mm thick) available.
- Laminated &
- Pressed Structural Profiles: Using profiles sized 40 × 40 × 4 mm.
- Enhanced Load Capacity: Stackable up to five levels with each level supporting up to 1500 kg.
- Enhanced Protective Coatings: Two layers of primer followed by a topcoat, with optional hot-dip galvanizing for extra durability.
Application Areas &
- Utilization Our metal pallet boxes are versatile containers designed to meet the demanding needs of modern logistics and industrial operations. Here are some of the primary domains where they excel:
- Logistics &
- Warehousing:
- Temporary Storage: Ideal for use in logistics departments for temporary storage solutions.
- Efficient Internal Transport: Their dimensions are optimized to make the most of available space, whether on trailers or within maritime containers.
- Returnable Packaging: Often used as durable, returnable packaging solutions that help streamline the handling process.
- Long-Distance Transport:
- Road &
- Rail: Engineered for long-distance transport, these boxes maximize the cargo volume (occupying up to 90% of a transport vehicle’s capacity), ensuring high efficiency and lower transportation costs.
- Specialized Industrial Applications:
- Automotive Industry: We have extensive experience in designing and fabricating containers and storage devices exclusively for the automotive sector. Our custom solutions meet the specific demands of handling and storing automotive components and parts.
- General Industrial Use: Beyond automotive applications, our equipment can be tailored for the safe handling and storage of a wide range of goods, including heavy loads and specialized materials.
- Custom-Designed Solutions:
- Tailor-Made Equipment: Our company can design and produce, according to your specifications, any type of equipment or specialized returnable packaging for handling and storage. Whether you need a solution for general goods or specialized industrial materials, we provide products engineered for your unique requirements.
Standard Dimensions and Capacities Our metal pallet boxes are available in five standard sizes to suit various operational needs:
- CX03:
- External Dimensions: 820 x 620 x 630 mm
- Internal Dimensions: 780 x 580 x 480 mm
- Load Capacity: 700 kg
- CX04:
- External Dimensions: 1020 x 620 x 630 mm
- Internal Dimensions: 980 x 580 x 480 mm
- Load Capacity: 700 kg
- CX05:
- External Dimensions: 1200 x 800 x 470 mm
- Internal Dimensions: 1180 x 780 x 350 mm
- Load Capacity: 1000 kg
- CX08:
- External Dimensions: 1200 x 800 x 970 mm
- Internal Dimensions: 1180 x 780 x 850 mm
- Load Capacity: 1000 kg
- CX09:
- External Dimensions: 1220 x 1020 x 970 mm
- Internal Dimensions: 1180 x 980 x 850 mm
- Load Capacity: 1000 kg
Why Choose Our Wire mesh containers?
- Optimized Space Utilization: Their dimensions are specifically designed to maximize cargo volume in every transport vehicle, from trailers to maritime containers.
- Durability and Safety: With high-quality materials, robust construction, and advanced corrosion protection, our boxes ensure longevity and safety even in harsh industrial environments.
- Versatility: Suitable for a wide range of applications—from temporary storage and internal logistics to long-distance road and rail transport.
- Customization: We offer tailor-made solutions to meet unique industry requirements, particularly within the automotive sector, ensuring that every container perfectly fits your operational needs.
Our metal pallet boxes represent a smart investment for companies looking to improve efficiency, reduce transportation costs, and maintain high safety standards across their logistics and storage operations. Whether you require standard models or customized designs, our solutions are engineered to deliver reliable performance in demanding industrial environments.
