Description

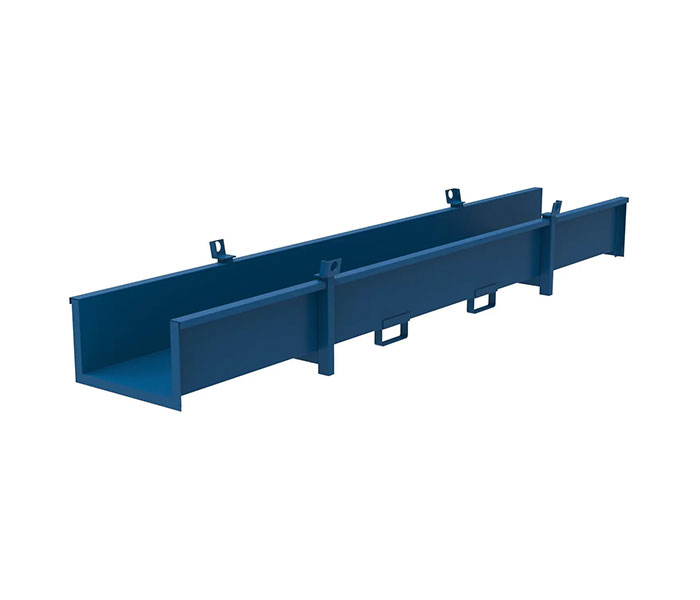

The U-shaped stackable cassette pallet is designed for the safe storage and transport of long profiles in industrial environments. It provides an efficient solution for optimizing space in warehouses, production halls and logistics centers while ensuring stability, strength and easy handling. Thanks to its robust construction and open design, the pallet allows the support of long materials and safe vertical stacking.
This steel pallet is manufactured for storing and transporting long profiles with lengths of up to 6 meters. The pallet can be stacked up to 6 levels and can be handled using a forklift or crane. The standard version is finished with electrostatic powder coating for protection against wear, while an optional hot-dip galvanized finish is available for outdoor use or humid environments.
Industrial Construction and Design
U-shaped structure: open-ended steel construction that allows profiles between 1500 mm and 6000 mm to extend beyond the pallet while remaining properly supported.
Reinforced frame: made from strong square steel tubing to provide high rigidity and mechanical resistance.
Side walls and base: covered with 1.5 mm steel sheets, forming a solid cassette structure for safe storage.
Fully welded construction: ensures durability and long-term performance in intensive industrial use.
Load Capacity and Stacking
- Stacking up to 4 levels – maximum load 1500 kg per pallet
- Stacking up to 6 levels – maximum load 1000 kg per pallet
- Integrated stacking guides ensure precise alignment and stability between pallets
- Enables space-saving vertical storage
Handling and Compatibility
- Forklift pockets: 180 × 70 mm for quick lifting and transport
- Crane lifting lugs: allow handling with overhead cranes in industrial environments
- Ideal for steel pipes, bars, steel profiles, aluminum profiles, PVC profiles and other long technical materials
Technical Specifications
- External dimensions: 1500 × 680 × 490 mm (L × W × H)
- Usable internal width: 500 mm
- Structure material: steel (square tubing and 1.5 mm sheet steel)
- Standard finish: electrostatic powder coating
- Optional finish: hot-dip galvanizing
- Maximum stacking capacity: up to 6 levels (max. 1000 kg per pallet)
- Forklift pockets: 180 × 70 mm
The U-shaped stackable cassette pallet is a durable investment for companies in construction, metal fabrication, logistics and profile processing industries. It ensures safe storage, efficient handling and optimal organization of long materials while helping increase productivity and reduce operational costs.
