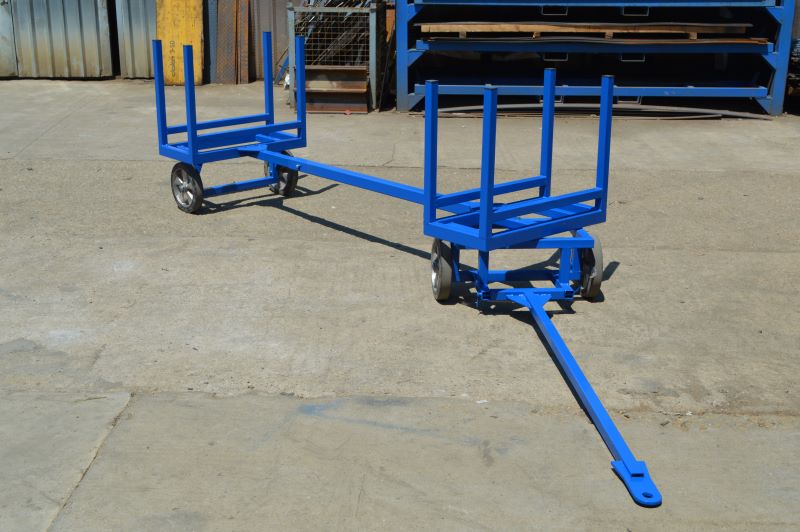

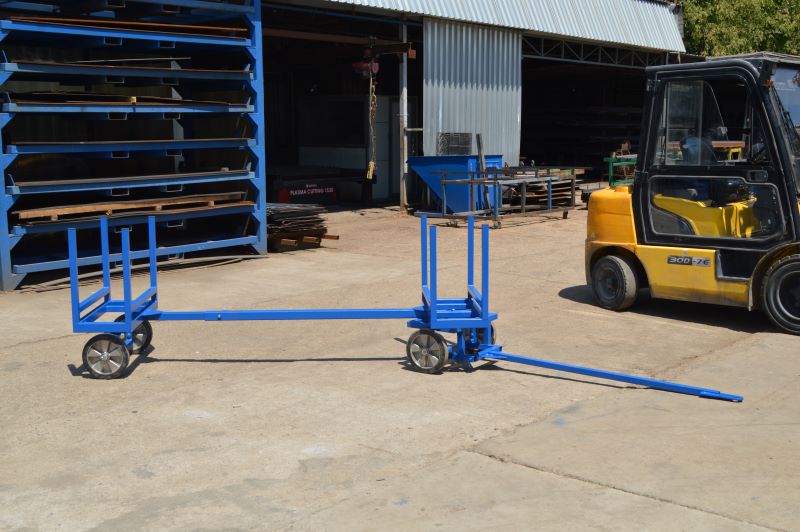

Extendable Trolley for Long Profiles – Industrial Transport Solution in UAE
This high-quality industrial product is engineered for professional performance and long-term reliability. Built with premium materials, it meets the rigorous demands of modern commercial and industrial environments across the UAE, including warehouses, fabrication workshops, steel processing plants, and logistics facilities.
The extendable trolley for long profiles is designed for the safe and efficient transport of pipes, beams, metal bars, plastic extrusions, and other long or oversized materials. Its adjustable chassis allows handling profiles of different lengths while maintaining stability and ease of maneuvering.
Technical Specifications
Chassis
Made from tubular and laminated steel profiles, welded for durability and long service life.
Platform
Open steel frame design for easy loading and unloading of long materials.
Front Axle
Steering axle with 180° turning capability.
Connection bar with standard 35 mm hole for towing.
Rear Axle
Fixed rear axle for stability during transport.
Wheels
Both axles equipped with 300 mm diameter wheels.
Steel rims with precision bearings and hard rubber tires for heavy-duty industrial use.
Drawbar and Towing System
Standard 35 mm coupling bolt compatible with towing hitches.
Towing hitch height: 400–600 mm.
Spring retaining system for secure connection.
Standard Sizes
800 × 1500–2500 × 450 mm – Loading height: 450 mm – Max load: 500 kg
800 × 2500–3500 × 450 mm – Loading height: 450 mm – Max load: 500 kg
800 × 3500–4500 × 450 mm – Loading height: 450 mm – Max load: 1000 kg
Maximum Section Size
650 × 650 mm
Maximum Speed
10 km/h
Applications and Availability
Manufactured in the UAE, with delivery available across the Gulf region.
Ideal for transporting long profiles, pipes, beams, and oversized industrial materials.
Suitable for warehouses, manufacturing plants, construction sites, and industrial logistics operations.
Key Benefits
Extendable chassis allows transport of different profile lengths.
Open platform design simplifies loading and unloading.
Heavy-duty steel construction ensures durability and long service life.
High maneuverability enables easy handling in industrial environments.
Custom sizes and configurations available to meet specific operational needs.
SMITS extendable industrial trolleys provide a reliable and efficient solution for transporting long materials, helping businesses improve safety, workflow, and productivity in demanding industrial environments.
