Description

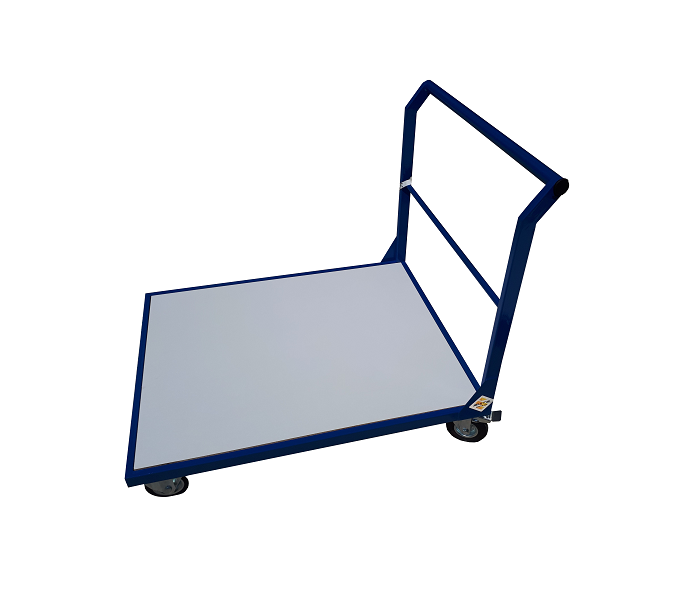

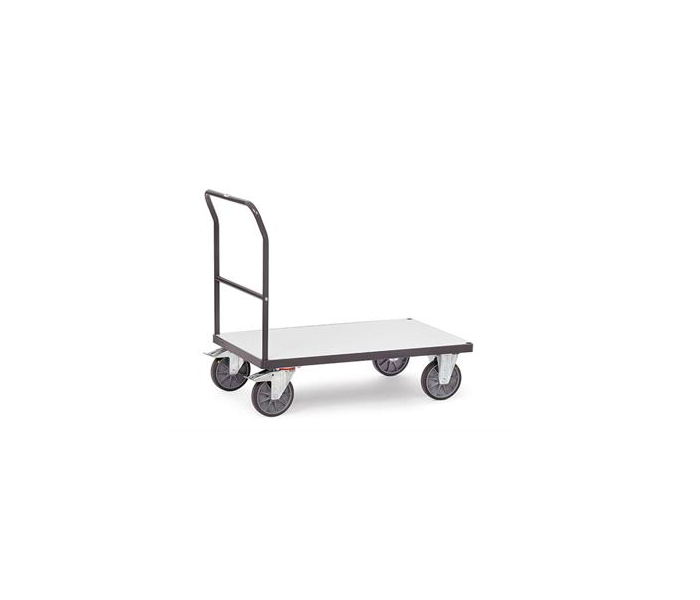

ESD Platform Trolley for Electronic Components
ESD platform trolleys are specially designed for the safe transport of printed circuit boards and electronic components that are sensitive to electrostatic discharge. The robust galvanized steel construction combined with ESD wheels ensures optimal maneuverability and reliable protection of sensitive components in industrial environments.
Technical Data
ESD platform trolley designed for safe transportation of electronic components
Chassis constructed from welded tubular and rolled steel profiles for maximum strength
Platform made from pressed steel sheet 1–1.5 mm with hot-dip galvanized finish
Fixed handle for easy handling (optional second handle available)
Wheels: 2 fixed and 2 swivel wheels with brake
Wheel rim made from pressed steel with hard ESD rubber tread
Available wheel diameters: 125 mm or 160 mm
Optional: other wheel types available on request
Specifications
Dimensions: 1070 x 600 x 850 mm
Platform material: galvanized steel sheet 1.5 mm
Wheel diameter: 125 mm
Load capacity: 200 kg
Detailed Description
The ESD platform trolley is designed to provide safe transport of PCB boards and other sensitive electronic components. It complies with European standards and regulations and is CE certified. The robust construction ensures an average service life of approximately 5 years, while the hot-dip galvanized finish offers excellent corrosion protection.
This trolley is ideal for use in electronics manufacturing lines, laboratories, assembly areas and warehouses where ESD protection is required.
Advantages
ESD protection for sensitive electronic components
Robust construction designed for intensive industrial use
ESD wheels with braking system for improved safety and maneuverability
Customizable according to customer requirements (handles, wheel types, dimensions)
Average service life: approximately 5 years
Full production traceability with unique serial number and barcode
Order
Optimize the handling and transport of electronic components with SMITS ESD Platform Trolleys, designed for safe and efficient use in ESD-controlled environments.
