Description

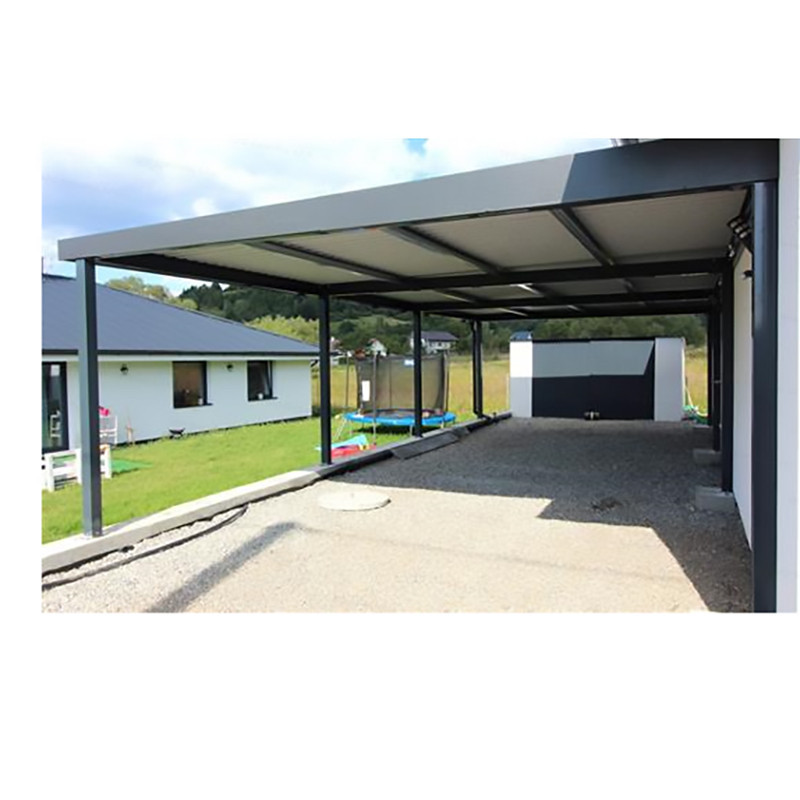

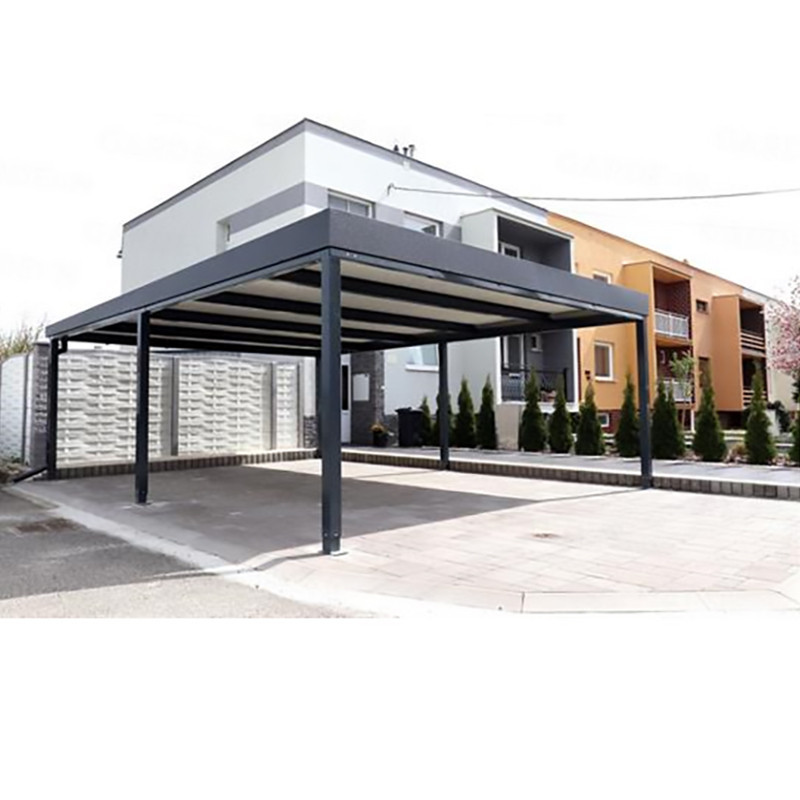

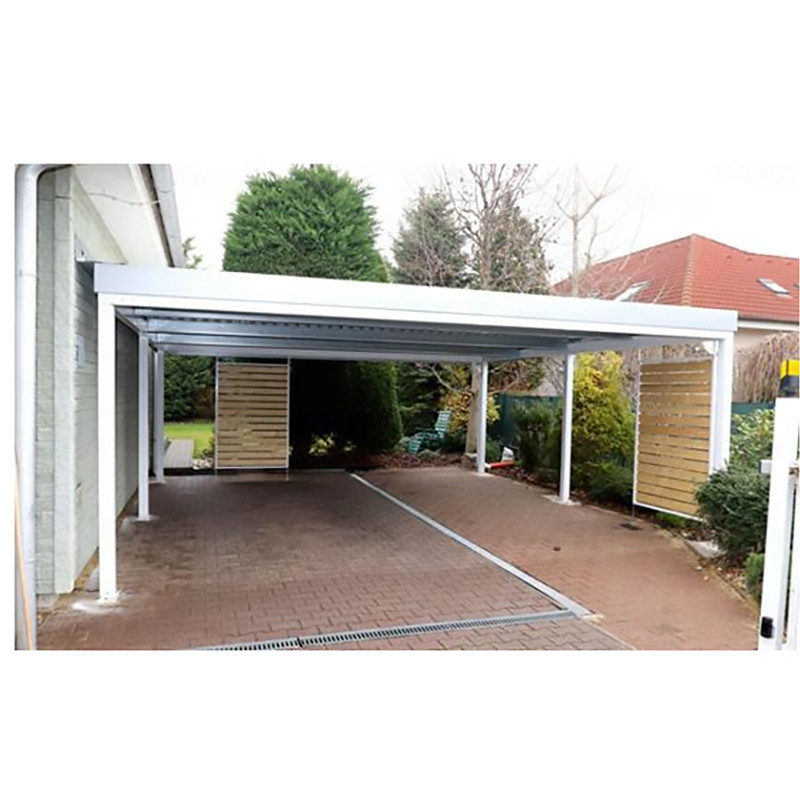

The Smits AVS4 carport is a premium solution designed to provide reliable protection for two vehicles in residential, commercial and private spaces across Dubai, Abu Dhabi and Sharjah. Built with a robust steel structure and a durable corrugated roof, this carport ensures long-term performance, weather resistance and a modern appearance.
Key Features
• Designed for 2 parking spaces with generous dimensions
• Strong steel structure for maximum durability and stability
• Corrugated steel roof (H35, 0.7 mm thickness)
• Optional insulated sandwich panel roof (100 mm)
• Modular, demountable structure delivered as a complete kit
• Engineered for outdoor use in UAE climate conditions
Technical Specifications

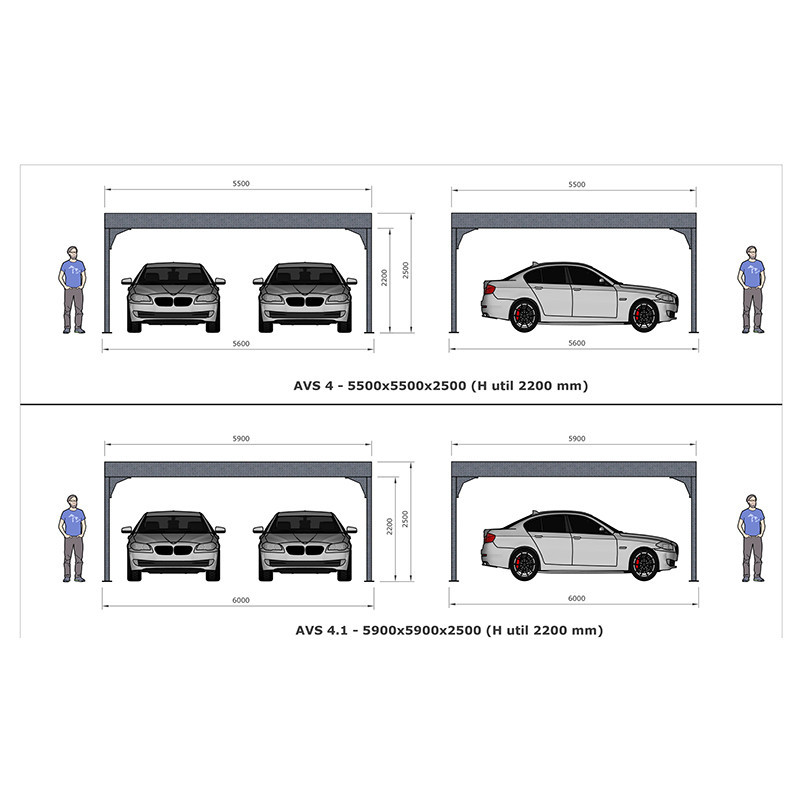

Product: AVS4 Carport – 2 parking spaces
Roof: Corrugated sheet H35, 0.7 mm thickness
Optional Roof: 100 mm sandwich panels
Columns: 4 pcs, square steel pipe 100x100x3 mm
Distance Between Columns: 5700 mm
Minimum Platform Size: 6500 x 6500 mm
Roof Slope: 1% for water drainage
Structure: Demountable, delivered as kit
Snow Load: Up to 110 kg/m²
Wind Resistance: Minimum class 2 (depending on configuration)
Installation: Fixing with anchor bolts, dowels or chemical anchors
Product Description
The Smits AVS4 carport is designed to combine strength, functionality and modern design, offering effective protection for vehicles against sun, rain, dust and environmental exposure. Its solid steel structure ensures long-term durability, while the spacious layout allows easy parking and maneuvering for two cars.
The standard roof is made from H35 corrugated steel sheet with a thickness of 0.7 mm, providing reliable protection against weather conditions. For enhanced insulation and a clean interior finish, an optional 100 mm sandwich panel roof is available upon request.
The structure is supported by four square steel columns (100x100x3 mm), securely fixed to a concrete platform using anchor bolts, dowels or chemical anchors. Depending on project requirements, the configuration can be adapted with additional columns and roof supports for increased strength.
With a 1% roof slope, the design ensures efficient rainwater drainage, maintaining a clean and safe environment. The carport is engineered to withstand significant loads and environmental stress, making it suitable for long-term outdoor use across the UAE.
Delivered as a complete kit with all fastening elements included, the AVS4 allows for fast and efficient installation. Its modular design also simplifies transport and handling on-site.
Advantages and Benefits
• Reliable protection for two vehicles
• Durable steel construction for long service life
• Efficient water drainage system
• Flexible configuration options for different projects
• Quick installation with complete kit delivery
• Modern design enhancing property appearance
• Suitable for residential, commercial and private use
Installation and Maintenance
The carport must be installed on a properly prepared concrete platform with the required minimum dimensions. Fixing is performed using anchor bolts, dowels or chemical anchors for maximum stability. Maintenance is minimal, requiring periodic cleaning of the roof and inspection of fastening points to ensure long-term safety and optimal appearance.
